Fosensor Outdoor Air Quality Monitoring Station FS00807
Brand: Fosensor
Specifications
SKU: Fosensor Outdoor Air Quality Monitoring Station FS00807
- Can integrate 10 types of sensors at the same time
- Easy to install and supports wall-mounted installation
- Flexible application, a variety of sensors free collocation
- Accurate detection and sensitive response
- Supports RS485 and LoraWan wireless communication
- Support custom development
Introduction Of air quality monitoring station
Air quality monitoring station, also known as air pollution detection station. The function of AQI meter station is to sample, measure and analyse the pollutants present in the atmosphere and air in a fixed point, continuously or at regular intervals. FS00807 is an air quality detection station which integrates 10 kinds of sensors of Oxygen O2, PM2.5, PM10, Carbon monoxide CO, Carbon dioxide CO2, Hydrogen sulphide H2S, Methane CH4, Combustible gas EX, Temperature, Humidity and so on, which is made by Fosensor. Then aiming to different needs, we offer different technical support so that you can get best solutions. Then each type of environmental indicator uses a separate sensor probe. It has a compact design, small footprint, full functionality, stable performance, cost-effective, and supports RS485 and LoraWan wireless communication methods. In the end, it promotes the development and application of environmental quality testing and IOT gas detection solutions.
Role of environmental monitoring station
Air quality monitoring station can help us to take into account the actual situation and formulate corresponding countermeasures, as well as regularly collect data on the emission of various pollutants and the total amount of changes, which can be used to assist in decision-making.
All in all, the continuous development of air quality monitoring station helps us to better monitor the air quality and reduce the air pollution well.
Features Of ambient air monitoring station
* Can integrate 8 types of sensors at the same time
* Easy to install and supports wall-mounted installation
* Flexible application, a variety of sensors free collocation
* Accurate detection and sensitive response
* Supports RS485 and LoraWan wireless communication
* Support custom development
Specifications of outdoor air quality monitoring system
| Specification | Parameter |
| Detecting item |
O2, PM2.5, PM10, CO, CO2, H2S, CH4, combustible gas EX, temperature, humidity, etc |
| Operating voltage | Local protocol |
| Alarm decibel | 120db |
| Indicator lamp | power indicator 1 |
| communication indicator 1 | |
| fault indicator 1 | |
| Alarm threshold | High or low report (the threshold can be set locally or delivered on the platform) |
| Communication mode | LoraWan/ Modbus |
| Communication frequency band | 470MHz |
| Shell protection | IP55 |
| Working temperature | -10 – 60℃ |
| Working humidity | 0%RH～95%RH (non-condensing) |
| Configuration interface | RS485 |
| Local communication | RS485 |
| Local protocol | Modbus RTU |
| Type | Testing Range | Resolution | Accuracy | Service Life |
| Temperature | -40℃~100℃ | 0.1 | ±0.5℃ | 10 years |
| Humidity | 0~100%RH | 0.1 | ±0.3%RH | 10 years |
| PM2.5 | 0~1000μg/m³ | 1μg/m³ | ±10% reading | ≥40000h |
| PM10 | 0~1000μg/m³ | 1μg/m³ | ±10% reading | ≥40000h |
| CO2 | 400~5000ppm | 1ppm | ±（50ppm+3%） | 10 years |
| TVOC | 0~5000μg/m | 1μg/m³ | ±10% reading | 10 years |

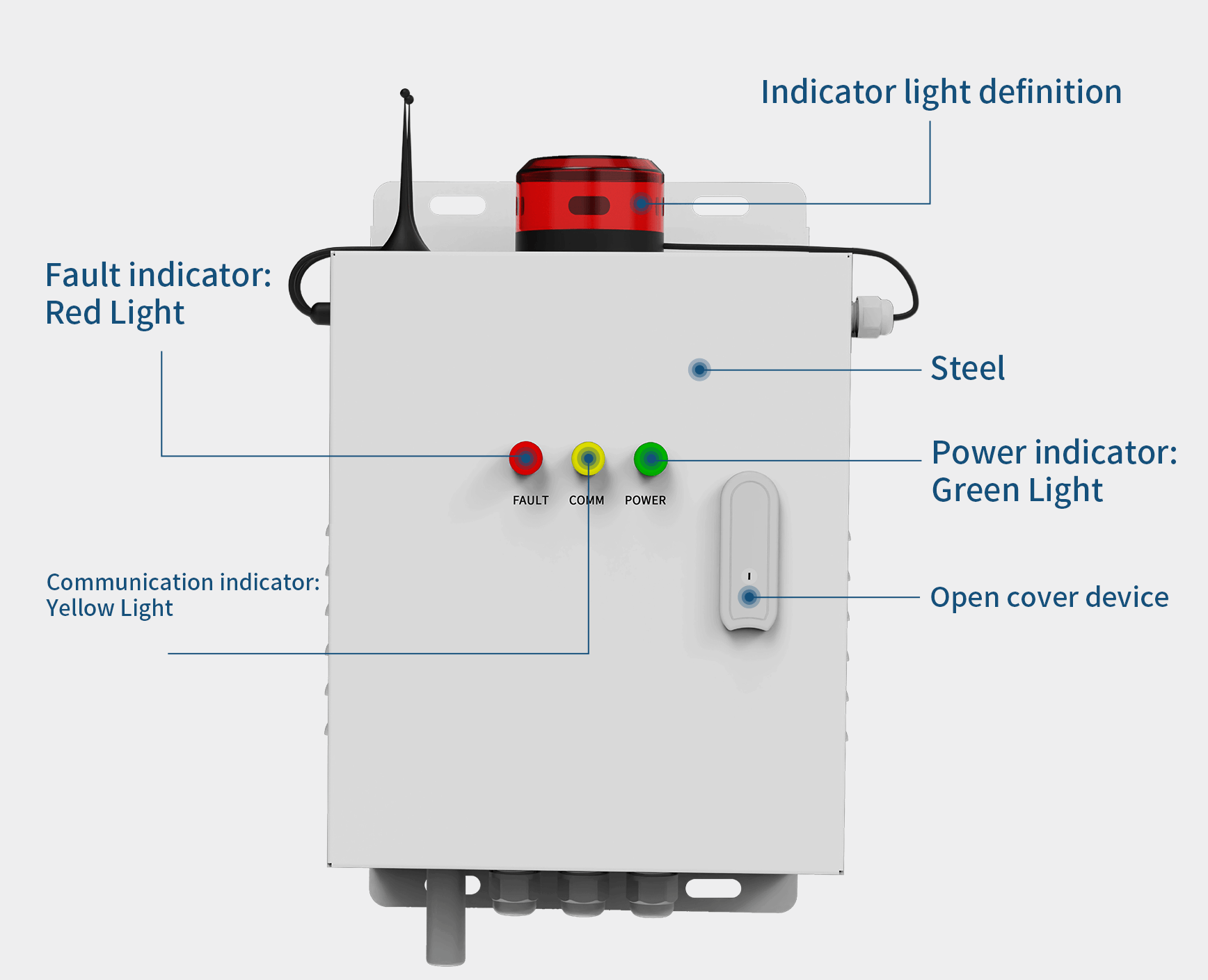

The structure of environmental monitor for sale
(1) Power indicator: Green Light
(2) Communication indicator: Yellow Light
(3) Fault indicator: Red Light
Air quality monitoring station FS00807 Applications
1.Industrial field
Industrial production is one of the main sources of air pollution in the city, Air quality monitoring station can monitor the concentration of pollutants in the ambient air in real time during the production process of factories, including PM2.5, PM10, CO, SO2, NO2 and other harmful gases, to ensure that the production process does not produce a large number of pollutants, to protect the health of workers, and to reduce the risk of environmental protection. Reduce the environmental risk of the enterprise.
2.Airports, stations, docks and other places
Air quality monitoring stations can be set up at these sites to monitor changes in these pollutants and to monitor the impact on people living nearby. At the same time, the monitoring station can be set up at the exit of flights, high-speed trains and other means of transport, real-time monitoring of emissions.
3.Schools and public places
Schools and public places are places where people congregate and cross paths, and have relatively high demands on the air environment. Through the real-time monitoring of Air quality monitoring station, it is possible to find out whether the concentration of harmful gases in the air exceeds the standard in time, so as to strengthen the prevention and protect the health of teachers, students, staff and other people in the park.
